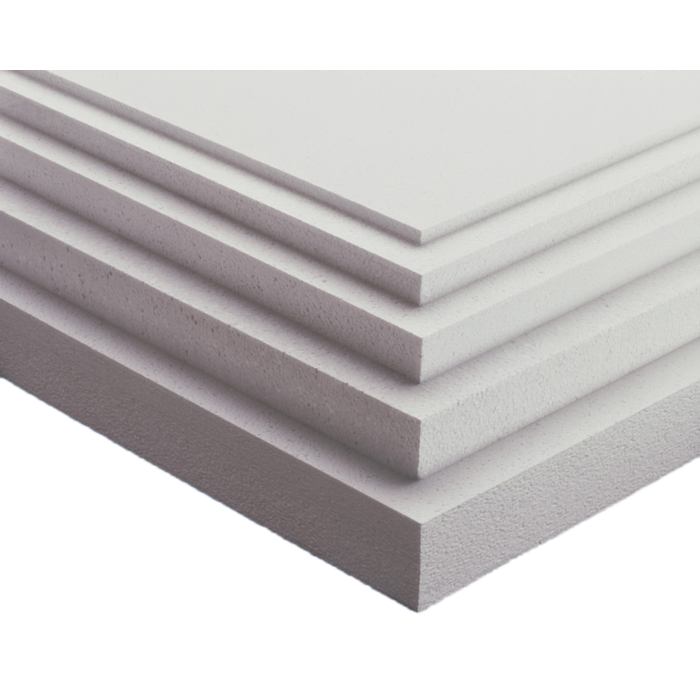

200 mm Foam Board Panel External Cladding 2.4m x 1.2m
- Buy 30 for $187.16 each and save 3%
- Buy 60 for $182.36 each and save 5%
Features & Applications
- EPS Foam polystyrene one of the most versatile boards on the market
- Foam Panel Class M Grade one of the most dense eps boards in it's class
- Size 200mm x 1200mm x 2400mm / 4.8Kg
- Used for external wall cladding board/panel
- Great use for sample boards to show case venetian art
- Void in-fills for new window installation
- Void in-fills for concreting
- Concrete Rebates
- Easily mouldable and shaping with the use of poly saw or hot knife.
- Greatly used in wide array of build applications such as exterior wall cladding on frist floor exterior cladding
- Best value for exterior render boards
- Very good insulation properties used in caravans, roof cavities and wall insulation.
- Craft and hobbies popular for creating props and background set design
- Photography background and reflective boards
- We also provide free recycling bag for any unused off cuts, drop it of in store for free. For a mess free work environment help recycle!
Please call for a quote on shipping and to confirm stock availability.
PH: 03 8535 4115
200 mm Foam External Cladding 2.4m x 1.2m
Versatile, lightweight and economical, expanded polystyrene sheets are an ideal insulation material for both commercial and residential use. Our expanded polystyrene sheets deliver excellent thermal insulation and long-term R-values. They are ideal for wall cladding, under slabs, garage doors and floors. Recyclable, sustainable, and free of CFCs, all panels comply with Australian Building Standards.
| OTHER PROPERTIES | UNIT | SL | S | M |
|---|---|---|---|---|
| Density - nominal | kg/m3 | 13.5 | 16 | 19 |
| Compressive strength at 1% deformation, max. | kPa | 23 | 31 | 42 |
| Compressive strength at 5% deformation, max. | kPa | 59 | 68 | 95 |
| Flexural strength, min. | kPa | 150 | 178 | 218 |
| Elastic modulus, min. | kPa | 2200 | 3100 | 4250 |
| Water absorption by total immersion, max. | Vol% | 4 | 4 | 3 |
| Buoyancy force | kg/m3 | 986.5 | 984 | 981 |
| Coefficient of thermal expansion | m/m deg K |
| UNIT | SL | S | M | |
|---|---|---|---|---|
| Compressive stress at 10% deformation, min. | kPa | 70 | 85 | 105 |
| Cross breaking strength, min. | kPa | 135 | 165 | 200 |
| Rate of vapour transmission, max. at 23°C | μg/m2.s | 630 | 580 | 520 |
| Max. dimensional stability (7 days at 70°C) | % | 1 | 1 | 1 |
| Min. thermal resistance (50mm sample at 25°C) | m2K/W R(50/90) | 1.20 | 1.22 | 1.25 |
How long will my delivery take?
In most cases, foam product delivery will take 5 days. Same-day dispatch may be possible depending on workload and stock. Special Order items may take 14–21 days.
Enter your postcode on the checkout page to confirm if we can deliver to your area.
No returns or refunds on EPS Foam Panels. They are easily damaged and will not be accepted for return.
Changes made to orders within 24 hours of scheduled delivery will incur a 5% restocking fee. Please check quantities carefully to avoid extra charges.
| Brand | RSC |
|---|---|
| Sheet Length | Sheet Size |
| Sheet Length | 1.2m x 2.4 |
-
